41 62 000 Removing And Installing Rear Lid: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Read relevant service information under BODY, GENERAL .

Necessary preliminary tasks:

Remove PANEL FOR REAR LID .
Disconnect all cable plug connections and pull wiring harness out of rear lid.

Carry over the work step shown symmetrically to the other side of the vehicle.

Release screws (1).

Slacken screw (2) and remove rear lid with a second person.

Tightening torque 41 62 1AZ .

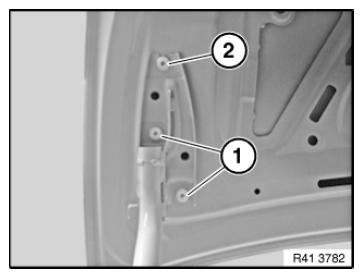

Fig 1: Identifying Rear Lid Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install rear lid at screw locations on hinge.

If necessary, ADJUST TRUNK LID .
