Installing actuator

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

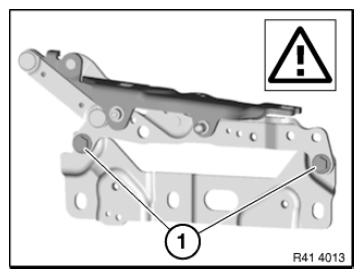

Screw hinge upper section to hinge lower section.

To do so, insert retaining screws M8 (1) and tighten.

IMPORTANT: After the actuator has been installed, retaining screws (1) must be removed again!

Fig 1: Identifying Actuator Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

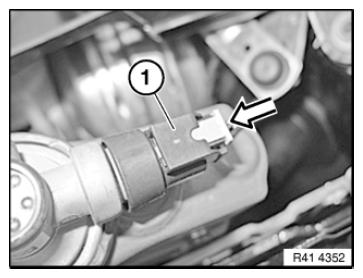

Connect plug (1) to actuator.

Fig 2: Connecting Plug To Actuator

Courtesy of BMW OF NORTH AMERICA, INC.

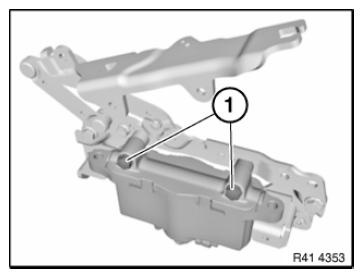

Secure actuator screws (1).

Tighten screws hand-tight only .

Fig 3: Identifying Actuator Screws

Courtesy of BMW OF NORTH AMERICA, INC.

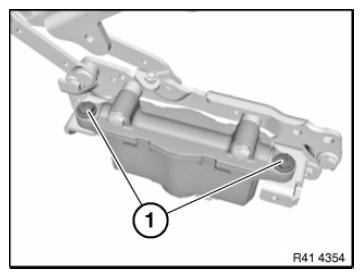

Insert screws (1) and tighten down

Tightening torque 41 61 5AZ .

Fig 4: Identifying Actuator Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 41 61 4AZ .

Fig 5: Identifying Actuator Screws

Courtesy of BMW OF NORTH AMERICA, INC.

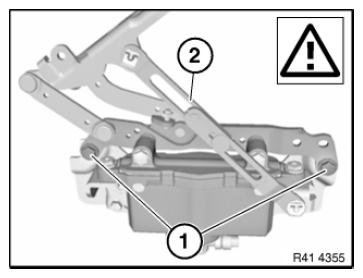

Fit resetter (2).

Remove retaining screws (1).

IMPORTANT: After the actuator has been installed, retaining screws (1) must be removed!
If the retaining screws are not removed after the actuator has been installed, active pedestrian protection will not function.

Seal holes of retaining screws with protective caps.

Fig 6: Identifying Resetter And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
