Height adjustment at strikers

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Adjust height by turning nut (1).

Height adjustment of engine compartment lid to side panel by means of STOP PAD .

NOTE: The engine compartment lid is correctly adjusted in the front section by a combination of pulling the strikers and pressing the stop pads.

Incorrect adjustment results in either wobbling of the engine compartment lid or sluggish unlocking.

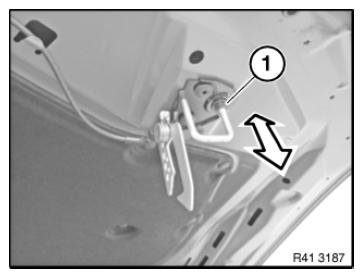

Fig 1: Adjusting Height Using Turning Nut

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Check function of retaining hook.
