52 24 420 Replacing backrest shell for rear seat

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ARMREST FOR REAR SEAT BACKREST
Remove GUIDE SLEEVES FOR HEAD RESTRAINTS

NOTE: Removal operation is shown on left side.
Carry out removal on right side in the same way.

Disconnect all retainers.

Lever out cover welt in marked area with plastic wedge.

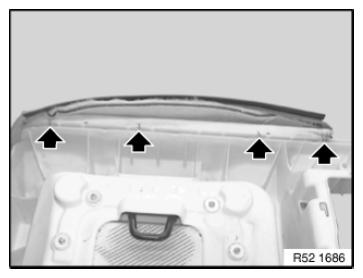

Fig 1: Locating Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Fold back cover in upper area.

Disconnect retainers underneath.

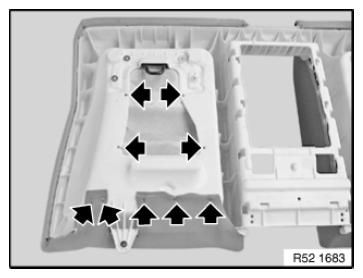

Fig 2: Locating Retainers Underneath

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove all remnants of retainers.

Bend new retainers to shape with special tool 52 0 050 .

Disengage cover from backrest frame.

Remove cover with padding from backrest shell.

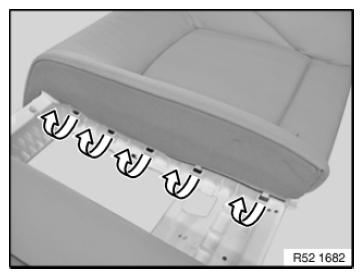

Fig 3: Removing Cover With Padding From Backrest Shell

Courtesy of BMW OF NORTH AMERICA, INC.
