52 24 030 Removing and installing complete armrest for rear seat backrest

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIDDLE HEAD RESTRAINT

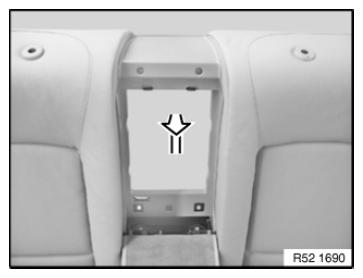

Press center armrest cover upwards and remove towards front.

Fig 1: Pressing Centre Armrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

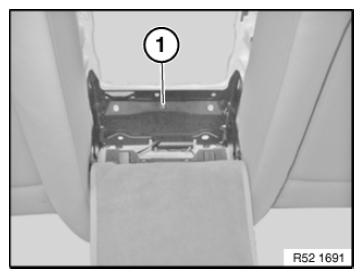

Make sure cover is correctly seated in backrest frame.

Fig 2: Identifying Backrest Frame Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 52 24 04AZ .

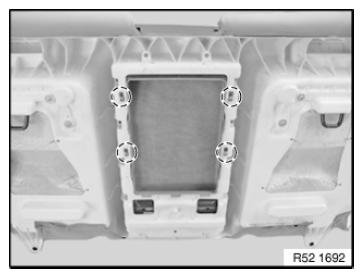

Remove armrest towards front.

Fig 3: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
