52 24 388 Removing and installing/replacing rear middle head restraint

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release screws (1).

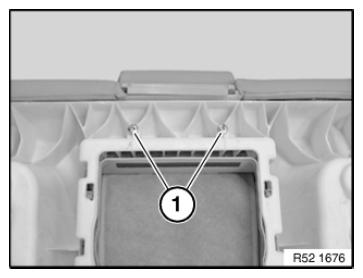

Fig 1: Identifying Rear Seat Backrest Screws
G08509334Courtesy of BMW OF NORTH AMERICA, INC.

Pull out head restraint towards front.

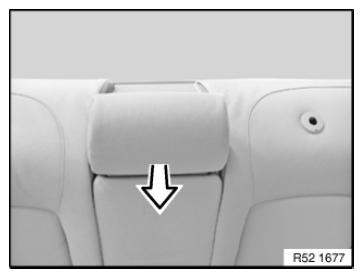

Fig 2: Pulling Out Head Restraint Towards Front
G08509335Courtesy of BMW OF NORTH AMERICA, INC.
