52 25... Replacing armrest upper part for rear seat backrest

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ARMREST for rear seat backrest

Release circlip (1) on left and right.

Release screws on left and right.

Installation note:

Armrest upper part is coded against incorrect assembly with plastic pins (2).

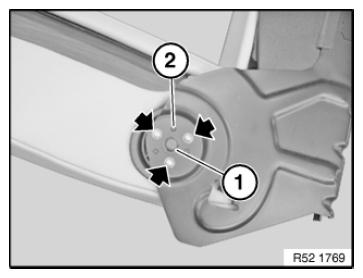

Fig 1: Identifying Retaining Ring And Plastic Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Remove CENTRE ARMREST UPHOLSTERY SECTION
