52 25 380 Removing and installing/replacing left or right rear head restraint mount

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear HEAD RESTRAINT
Remove REAR PANEL on rear seat backrest
Remove BACKREST COVER in upper area

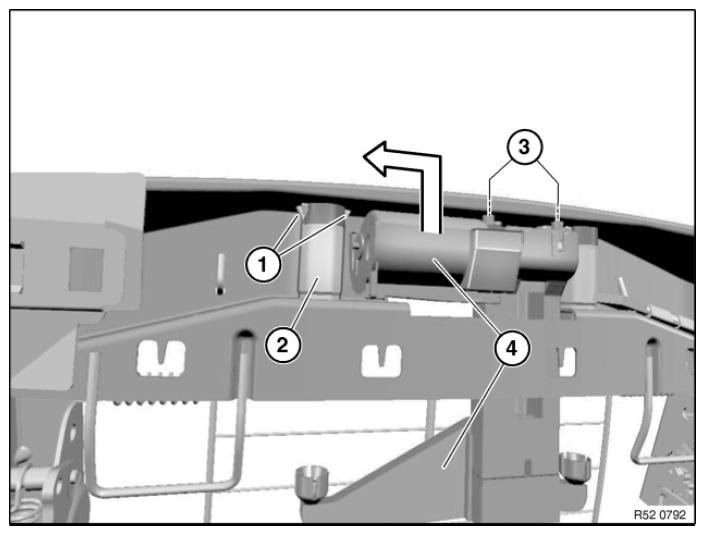

Fig 1: Identifying Head Restraint Mount, Catches, Screws And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Move head restraint fully downwards (otherwise removal of head restraint guide is not possible!).
Disconnect plug connection.
Unlock catches (1) and remove guide (2) on left and right towards top.
Release screws (3).
Tightening torque 67 31 14AZ .

Tilt head restraint mount (4) in direction of arrow and feed out towards top.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
