52 25 410 Replacing backrest cover for left or right rear seat

Necessary preliminary tasks:

• Remove REAR SEAT
• Remove REAR PANEL  on rear seat backrest

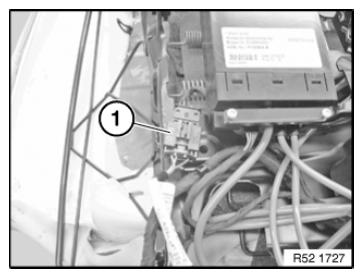

Unlock and disconnect plug connection (1) for backrest heating.

Fig 1: Identifying Backrest Heating Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

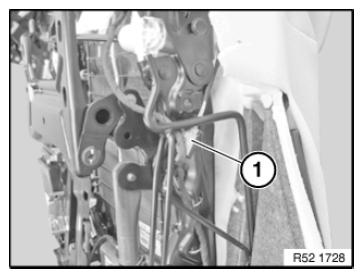

Unlock and disconnect plug connection (1) for climate-control mat.

Fig 2: Identifying Climate-Control Mat Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

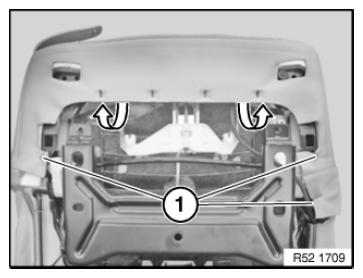

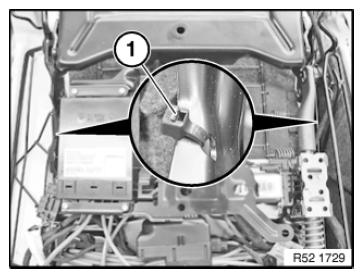

Cut cable straps (1) on left and right.

Installation note:

Replace faulty cable straps.

Fig 3: Identifying Cable Straps On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

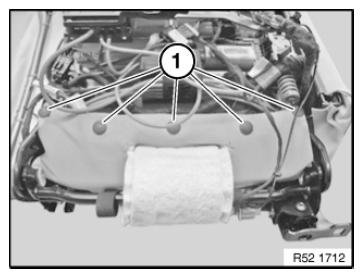

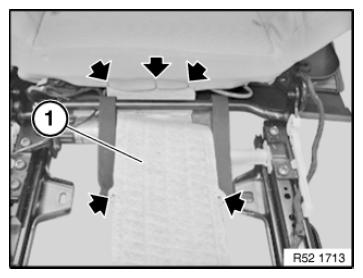

Release all clamps in area of climate-control mat (1).

Fig 4: Locating Climate-Control Mat Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

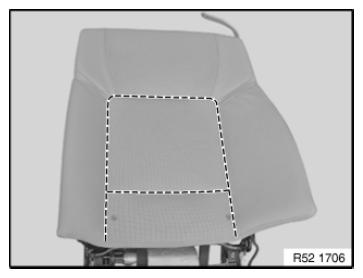

Loosen clamps (1).

Disengage backrest cover at top from metal tabs.

Fig 5: Disengaging Backrest Cover At Top From Metal Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out clips (1).

Installation note:

Replace faulty clips (1).

Fig 6: Identifying Backrest Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

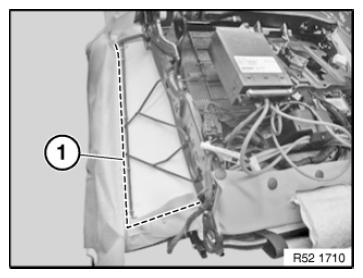

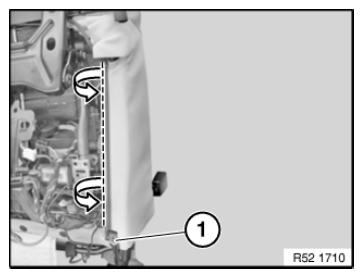

Release clamps in marked area (1).

Fig 7: Identifying Clamps Releasing Area

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out welt in marked area.

Release clamp (1).

Remove backrest cover with upholstery from backrest frame.

Fig 8: Identifying Clamps Releasing Area

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamps in marked area.

Remove backrest cover from upholstery.

Feed climate-control mat out of backrest cover.

Replacement only:

Pull trim wires out of seat cover.

Installation note:

Slide trim threads into new seat cover.

If necessary, cut mounting for trim threads.

Fig 9: Identifying Clamps Releasing Area On Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

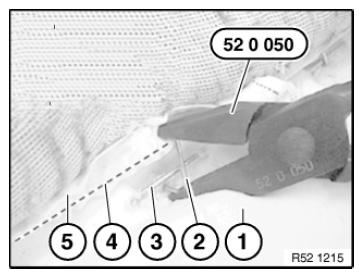

Bend new clamp (2) closed with pliers 52 0 050 .

1. Clamp
2. Upholstery
3. Trim wire in upholstery
4. Trim wire in seat cover
5. Cover
   Fig 10: Inserting Retainer With Special Tool (52 0 050)

   Courtesy of BMW OF NORTH AMERICA, INC.

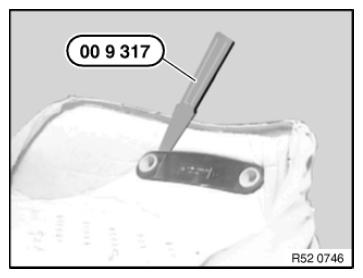

Lever out locking strip of head restraint guide with plastic wedge 00 9 317 .
