52 25 049 Replacing lumbar support on left or right rear seat

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MASSAGE MAT

Detach air hoses from solenoid valve.

NOTE: Heat air hoses gently if they are too firmly seated on solenoid valve.

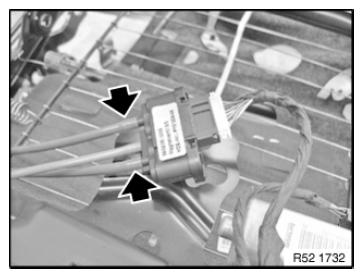

Fig 1: Locating Solenoid Valve Air Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Remove clamps (1) at top left and right.

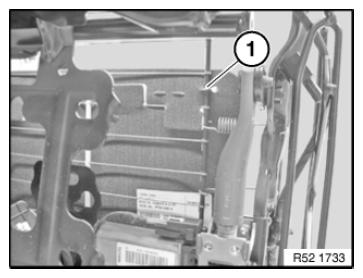

Fig 2: Identifying Clamps At Top Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

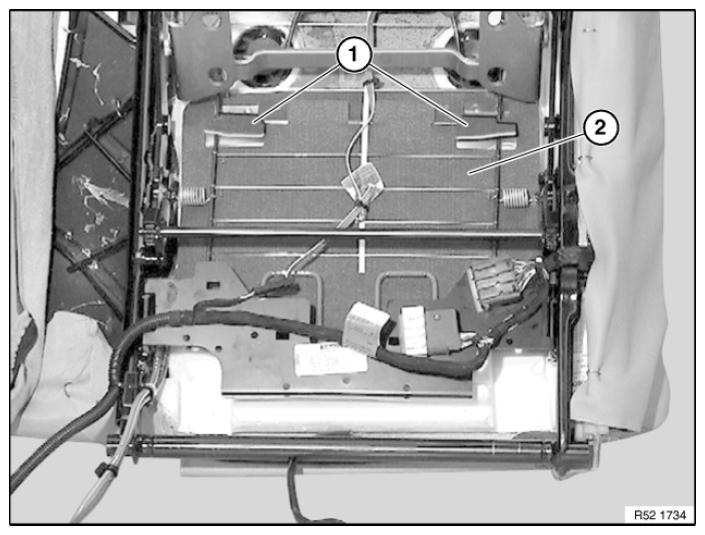

Fig 3: Identifying Lumbar Support And Spring Wire

Courtesy of BMW OF NORTH AMERICA, INC.

Detach lumbar support (1) from spring wire (2).

Installation note:

Engage lumbar support on fifth spring wire from below.

Air hoses must be laid without kinks.

Check lumbar support for damage.

Run a function check.
