52 25 047 Removing and installing/replacing massage mat

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LEFT OR RIGHT BACKREST COVER

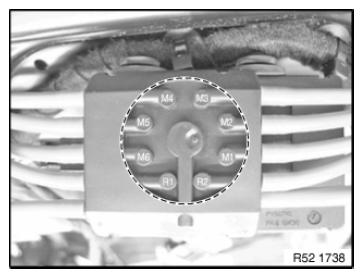

Release all air hoses in marked area.

NOTE: Gently heat the air hoses if too tightly seated on the valve block.

Fig 1: Identifying Air Hoses Releasing Area

Courtesy of BMW OF NORTH AMERICA, INC.

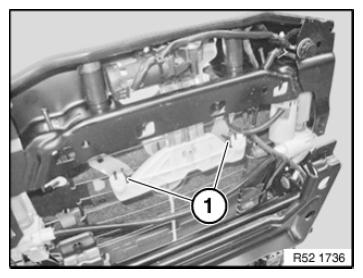

Cut open cable tie (1).

Installation:

Replace faulty cable ties (1).

Fig 2: Identifying Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

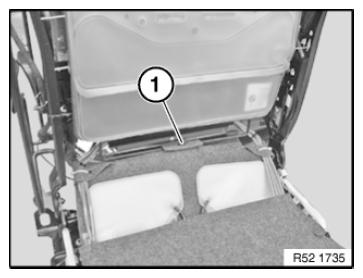

Fold massage mat forwards.

Lever out clip (1).

Installation:

If necessary, replace faulty clip (1).

Remove massage mat.

Fig 3: Identifying Massage Mat Clip

Courtesy of BMW OF NORTH AMERICA, INC.
