67 31 510 Removing and installing/replacing drive unit for seat cushion tilt adjustment: Replacement

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

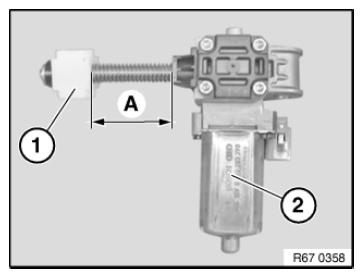

Measure dimension (A) and adjust by turning holder (1) on new drive unit for seat cushion tilt adjustment (2).

INITIALIZE drive unit for seat cushion tilt adjustment.

Fig 1: Identifying Seat Unit Adjuster And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
