52 14 402 Replacing seat cover for driver's seat (normal/electric): Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DRIVER'S SEAT .
Remove REAR PANEL on front seat backrest
Remove INNER COVER on driver's seat
Remove SWITCH COMBINATION

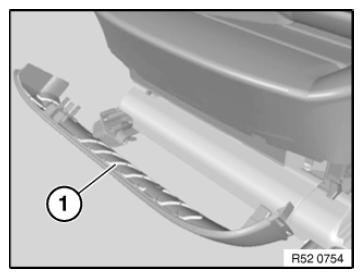

Remove cover (1) on front seat:

Press clip on door side outwards
Press clip on tunnel side upwards
Pull cover (1) forwards out of seat mechanism

Fig 1: Identifying Front Seat Cover
Courtesy of BMW OF NORTH AMERICA, INC.

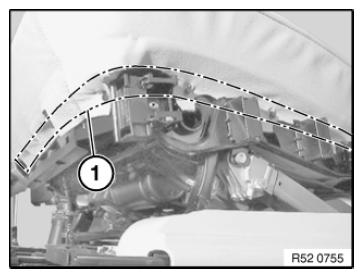

Unhook seat cover on at all attachment points (1).

Fig 2: Identifying Seat Cover Attachment Points

G08508827

Courtesy of BMW OF NORTH AMERICA, INC.

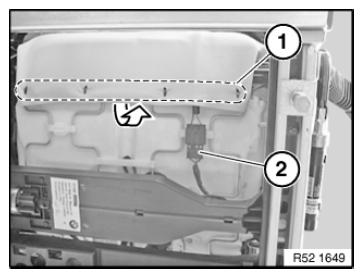

Unhook seat cover in marked area (1).

With seat heating only as optional equipment:

Disconnect plug connection (2).

Remove seat cover complete with upholstery.

Fig 3: Disconnecting Seat Cover Marked Area

G08508828

Courtesy of BMW OF NORTH AMERICA, INC.

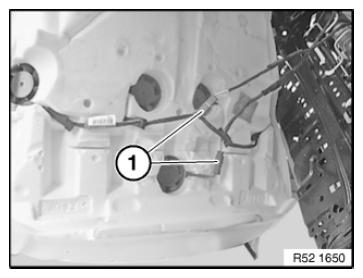

With climate control only as optional equipment:

Release plug connections (1) and disconnect.

Fig 4: Identifying Plug Connections

G08508829

Courtesy of BMW OF NORTH AMERICA, INC.

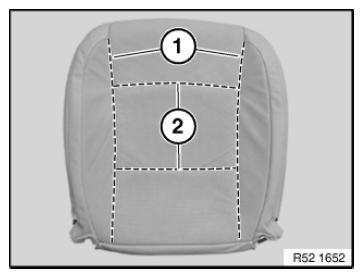

Detach all clamps in side area from longitudinal wires (1).

Pull trim wires (1) forward out of seat cover.

Carefully fold back seat cover and release clamps from cross-wires (2).

Remove seat cover from upholstery.

IMPORTANT: Remove all remnants of clamps from seat cover and upholstery.

Fig 5: Identifying Trim And Cross-Wires

G08508830

Courtesy of BMW OF NORTH AMERICA, INC.
