52 14 041 Removing and installing inner cover on left or right front seat

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Release screw (1).

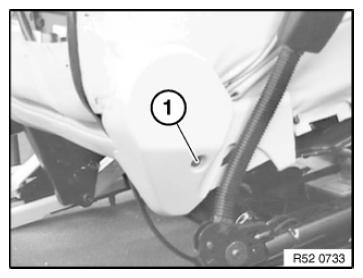

Fig 1: Identifying Front Seat Inner Cover Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Cover is secured by guide (2) in bore hole (1).

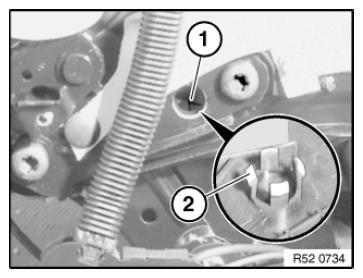

Fig 2: Identifying Guide And Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.
