52 17 062 Removing and installing/replacing front left or right lumbar support with valve housing (active seat): Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR PANEL on front seat backrest
Partially remove backrest cover. See BACKREST COVER FOR DRIVER'S SEAT or BACKREST COVER FOR FRONT PASSENGER SEAT .

Unfasten plug connection (1) and disconnect.

Detach valve housing from pinetree clips.

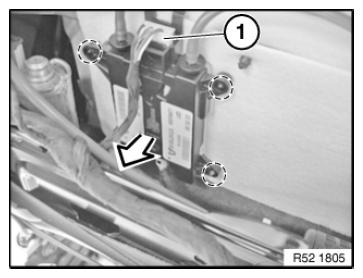

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

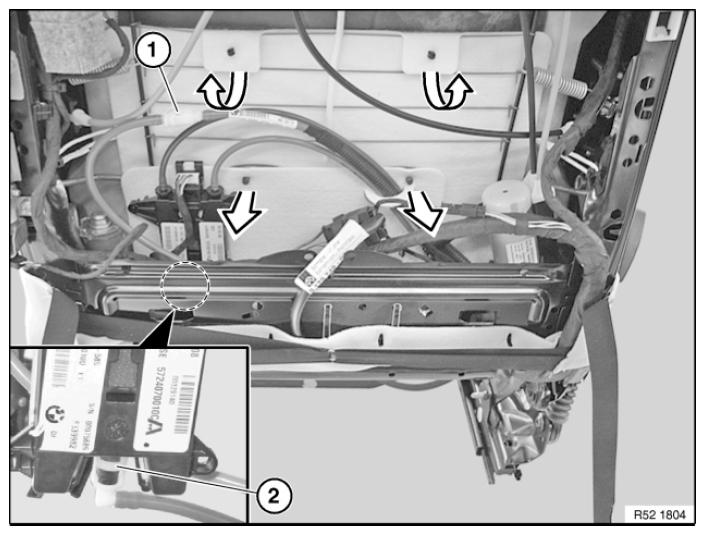

Fig 2: Disconnecting Quick Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect quick connector (1) and feed air hose out of fleece mat.

Pop out upper fleece tabs and disengage from spring wire.

Pop out lower fleece mat.

Unlock and disconnect quick connector (2).

Remove lumbar cushion with valve housing downwards between backrest frame and backrest padding.
