52 17 205 Removing and installing/replacing both rear panels on left or right front seat backrest

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

With rear-seat entertainment option only:
Remove REAR PASSENGER COMPARTMENT MONITOR COVER

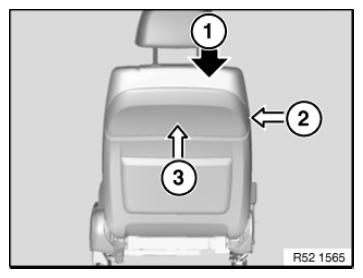

Fig 1: Pulling Rear Panel From Lower Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Operation is shown on the left seat. When removing from the right seat, transpose the pull and striking sides accordingly.

Rear panel upper part :

Grip between rear panel and backrest cover on tunnel side until clamp can be felt (do not pull).
At same time, firmly punch towards middle of seat on inside (tunnel side) at top.
Upper clamps spring out of seat guide.
Pull upper rear panel up out of lower guides.

NOTE:

Clamp
Guide
Upper rear panel

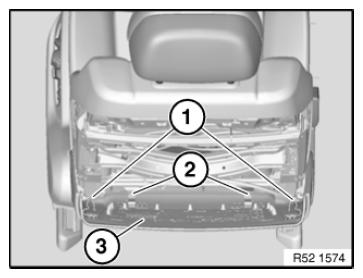

Fig 2: Identifying Retainer, Guide And Upper Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

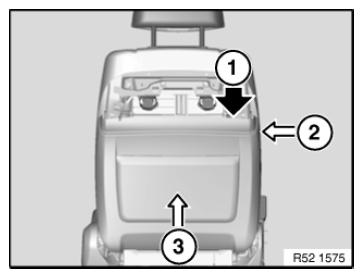

Fig 3: Pulling Lower Rear Panel Up Out Of Lower Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Rear panel lower section:

Grip between rear panel and backrest cover on tunnel side until clamp can be felt (do not pull).
At same time, firmly punch towards middle of seat on inside (tunnel side) at top.
Upper clamps spring out of seat guide.
Pull lower rear panel up out of lower guides

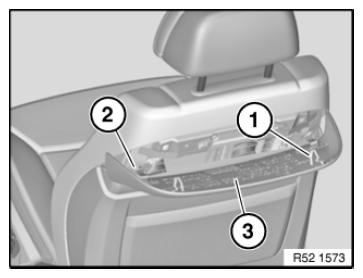

Fig 4: Identifying Springs, Lower Rear Panel And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip springs (1) on left and right.

Remove lower rear panel (3) upwards out of guide (2).
