16 12 060 Removing and installing/replacing carbon canister (US version NVLD)
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear right WHEEL ARCH PANEL

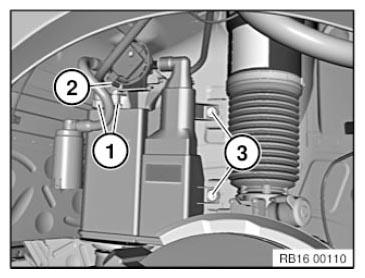

Unlock snap fasteners (1) and remove tank ventilation lines.
Disconnect plug connection (2).
Release screws (3) and swing out carbon canister.
Installation note:
Tightening torque 16 13 1AZ .
The following components must be modified when the carbon canister is replaced:
