16 13 521 Removing and installing/replacing pressure switch for Natural Vacuum Leak Detection (NVLD)
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove CARBON CANISTER .
- Remove DUST FILTER .

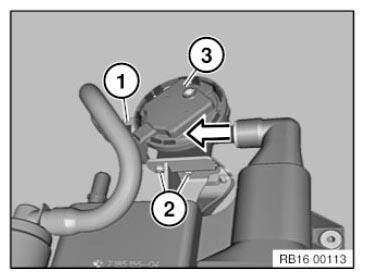

Unlock and disconnect snap fastener (1).
Unfasten screws (2).
Pull off pressure switch (3) in direction of arrow.
Installation note:
Check gaskets and replace if necessary.
