51 24 133 Removing and installing/replacing Automatic Soft Close drive on rear lid (Automatic Soft Closing)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM FOR REAR LID

Disconnect plug connection (1).

Release screws (2) and feed out drive (3).

Tightening torque 51 24 4AZ .

Fig 1: Identifying Plug Connection And Screws And Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Feed Bowden cable out of REAR LID LOCK .

Installation note:

Make sure Bowden cable (1) is correctly positioned in rear lid.

Lay Bowden cable (1) without kinks.

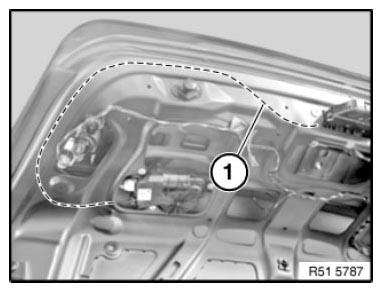

Fig 2: Identifying Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
