51 24 100 Removing and installing/replacing rear lid lock

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PANEL FOR REAR LID

Unlock plug connections (1) and disconnect.

Release screws.

Tightening torque 51 24 1AZ .

Feed out rear lid lock.

Fig 1: Identifying Plug Connections With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip Bowden cable sleeve (1).

Feed out Bowden cable nipple in direction of arrow.

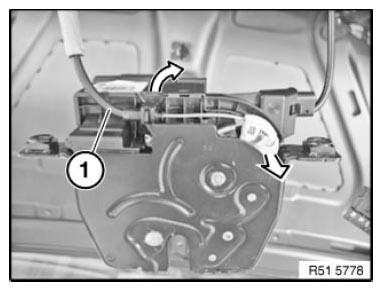

Fig 2: Feeding Out Bowden Cable Nipple

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with rear lid open.
