51 24 130 Removing and installing/replacing striker for rear lid lock

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Lever out cap (1).

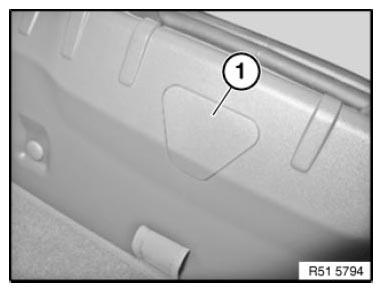

Fig 1: Identifying Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 51 24 03AZ .

Remove striker for rear lid lock (1).

Installation:

Adjust REAR LID LOCK .

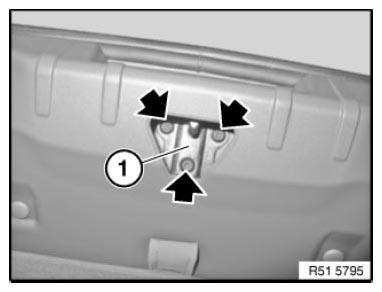

Fig 2: Locating Striker Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Striker and rear lid lock must not be greased.
