51 24 050 Removing and installing/replacing lock element (lock cylinder) for rear lid

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM STRIP FROM REAR LID CENTRE SECTION

Release screws (1).

Tightening torque 51 24 2AZ .

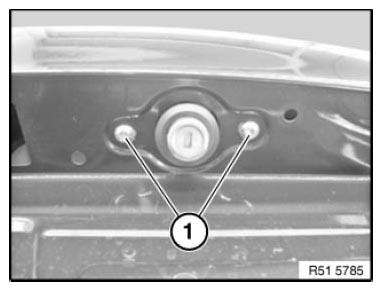

Fig 1: Identifying Lock Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Press counter-supports (1) at back to prevent accompanying rotation.

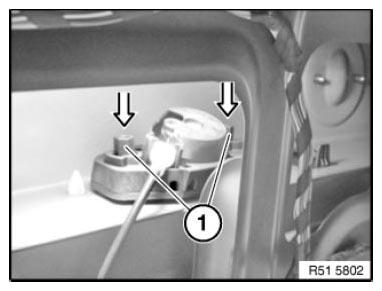

Fig 2: Pressing Counter-Supports

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip Bowden cable sleeve (1).

Feed out Bowden cable nipple in direction of arrow.

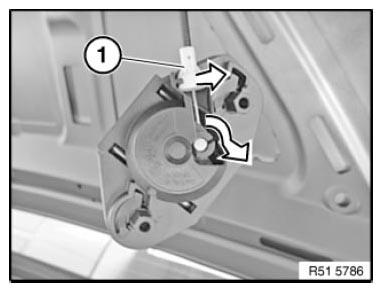

Fig 3: Feeding Out Bowden Cable Nipple

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure Bowden cable (1) is correctly positioned in rear lid.

Lay Bowden cable (1) without kinks.

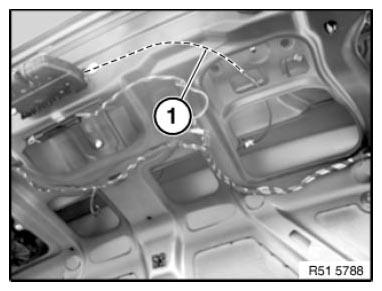

Fig 4: Identifying Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with rear lid open.
