51 13 116 Removing and installing/replacing cowl panel cover

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BOTH WINDSCREEN WIPER ARMS .

Lever out expander rivets (1) on cover (2) on left/right.

Remove cover (2).

Installation note:

If necessary, replace damaged expanding rivets.

Make sure holders (3) are correctly seated.

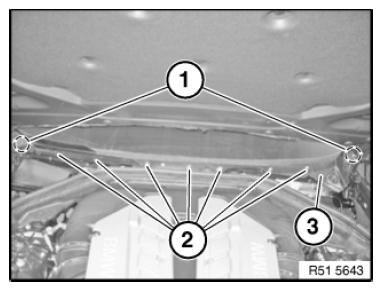

Fig 1: Identifying Expanding Rivets, Cover And Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Release expanding rivets (1) on left/right.

Turn snap fastener (2) approx. 90° counterclockwise.

Remove cowl panel cover (3) in upwards direction.

Installation note:

If necessary, replace damaged expanding rivets.

Check cover (3) for correct fit.

Tighten snap fastener (2) from the middle.

The fastener is closed if the arrow tips point to each other.

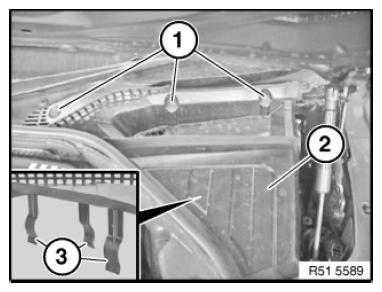

Fig 2: Identifying Expanding Rivets, Cover And Quick-Release Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.
