51 34 211 Replace rubber window seal for rear left or right side window

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COVER ON INSIDE OF DOOR WINDOW FRAME
Remove DECORATIVE STRIP FROM WINDOW FRAME

IMPORTANT: The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS " serve as the basis for this repair instruction and must be observed without fail.

Feed out rubber guide (1) at bottom and out of side window guides.

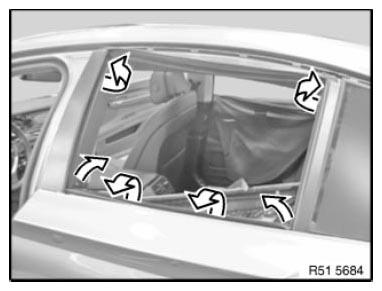

Fig 1: Feeding Out Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Moisten rubber guide (2) FOR SIDE FITTING WITH APPROVED LUBRICANT.

If necessary, retract door window glass (1) approx. 50 mm into rubber guide.

Open door window glass and at same time slide rubber guide downwards into window guide (3).

Rubber guide must not be damaged or missing.

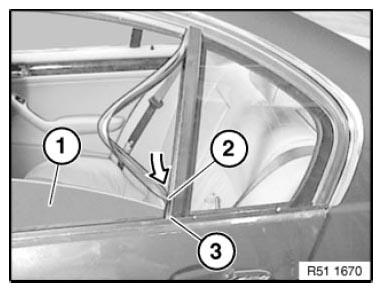

Fig 2: Pushing Rubber Guide On Door Window Glass And Window Guide

Courtesy of BMW OF NORTH AMERICA, INC.
