51 12 156 Removing and installing (replacing) rear bumper panel: Removing

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Starting from the outside, carefully snap out the individual guide tabs on left and right

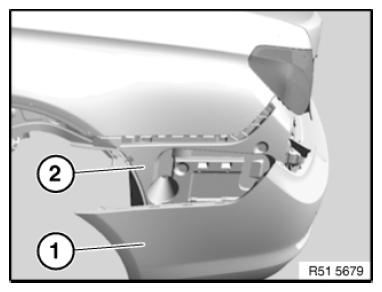

Fig 1: Identifying Bumper Trim And Mounting Holder
Courtesy of BMW OF NORTH AMERICA, INC.
Pull bumper panel (1) straight towards rear with aid of a 2nd person
If necessary, disconnect plug connections
Remove the bumper panel (1)

Installation note:

PROTECTIVE FILM FOR PREVENTING PAINT ABRASION in the area of the invisible joint (side frame) must not de damaged or missing.

Guide tabs at top and bottom must not be damaged!

Observe BODY GAP DIMENSIONS .

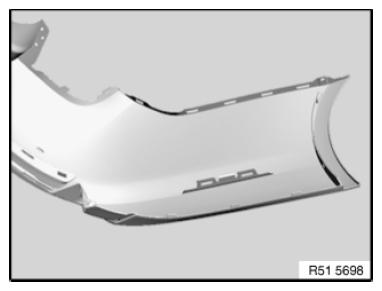

Fig 2: Identifying Protective Film Area On Bumper

Courtesy of BMW OF NORTH AMERICA, INC.
