51 12 156 Removing and installing (replacing) rear bumper panel: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: To guarantee system function on vehicles with LANE CHANGE WARNING SENSOR :

there must be no mechanical damage (e.g. dents) and no body repair work with filler or painting (several coats) must be carried out in a 10 cm radius about the left or right sensor on the bumper panel
no stickers must be attached in the area of the sensor

Necessary preliminary tasks:

Remove COVER ON REAR BUMPER PANEL

Version with Smart Opener:

Remove SENSOR LINE AT TOP

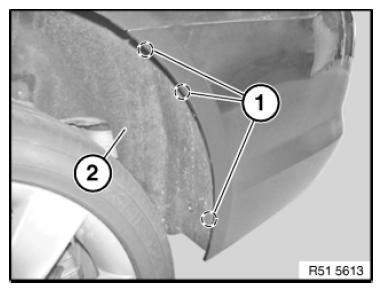

Release screws (1) on wheel arch cover at rear (2).

Fig 1: Identifying Rear Wheel Arch Cover With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

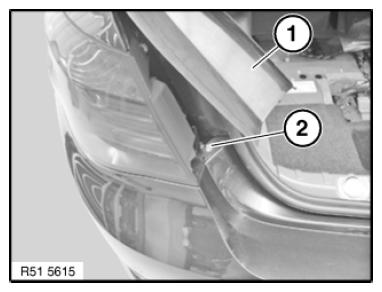

Raise rear light cover (1).

Lever out left expanding rivet (2) underneath.

Fig 2: Identifying Rear Light Cover And Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

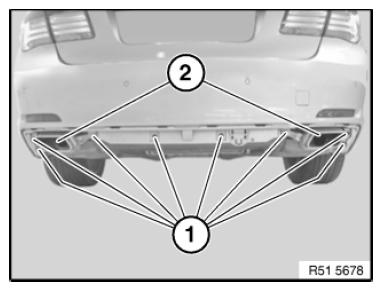

Release screws (1).

If necessary, remove exhaust system trims (2).

Fig 3: Identifying Exhaust System Trims With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Bumper panel (1) is engaged at the sides in the holder (2) and must be unlocked for removal.
