51 12 164 Removing and installing/replacing trim on bumper trim

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Unclip trim on bumper trim at rear (1) in direction of arrow starting on outside.

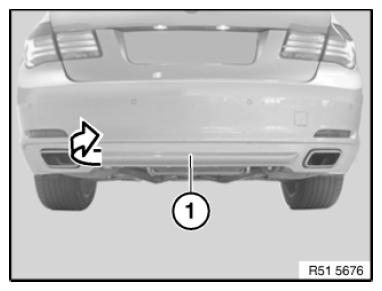

Fig 1: Removing Trim On Rear Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

All retaining lugs and guides on trim for bumper trim at rear (1) must not be damaged.

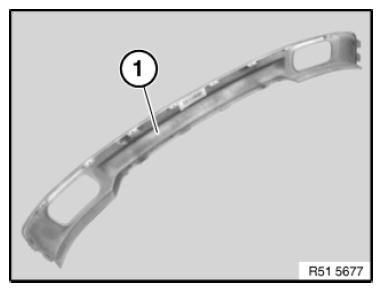

Fig 2: Identifying Rear Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.
