61 31 172 Removing and installing/replacing switch for electromechanical parking brake

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

DISCONNECT NEGATIVE BATTERY CABLE (to avoid fault memory entries)
F03 Only: Disconnect both battery negative cables
Remove GEAR SELECTOR SWITCH COVER

Release screws (1).

Remove switch for electromechanical parking brake (2) from cover for gear selector switch (3).

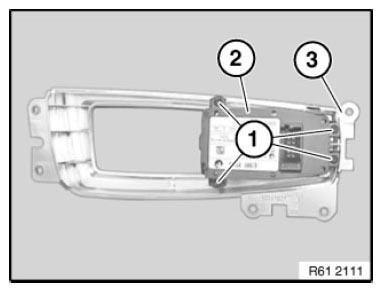

Fig 1: Identifying Electromechanical Parking Brake And Gear Selector Switch With Screws

Courtesy of BMW OF NORTH AMERICA, INC.
