51 16 202 Removing and installing/replacing front cup holder

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTRE CONSOLE TRIM

Release screws (1).

Remove front cup holder (2) from center console (3).

Installation:

Make sure front cup holder (2) is correctly seated.

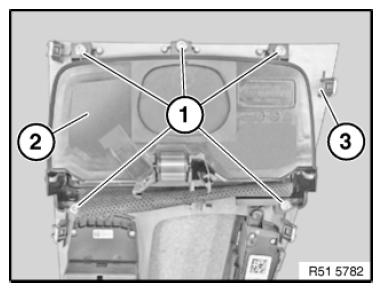

Fig 1: Identifying Front Cup Holder, Centre Console And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
