51 16 160 Removing and installing/replacing center console trim

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!
Carry out the following operation carefully so as to avoid damage.
Tape off center console trim in work area.

Carefully lever front center armrest trim (1) with special tool 00 9 322 out of center console and remove.

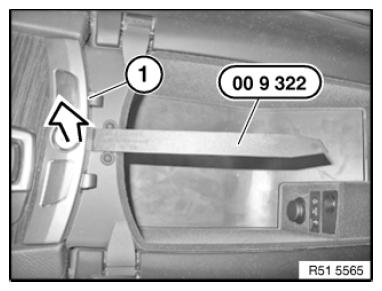

Fig 1: Removing Front Centre Armrest Trim With Special Tool (00 9 322)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

IMPORTANT: First tighten screws hand-tight.

Tightening torque 51 16 9AZ .

Carefully lever out center console trim (2) with special tool 00 9 323 .

Disconnect plug connections underneath.

Remove center console trim (2) in direction of arrow.

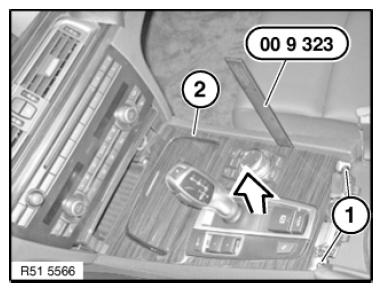

Fig 2: Removing Centre Console Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace retainers (1).

Make sure center console trim (2) is correctly seated.

Replacement:

Remove CENTRE CONSOLE OPERATING UNIT
Remove FRONT CONTROLLER .

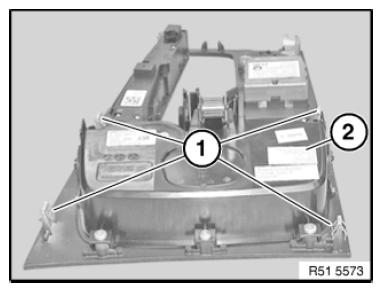

Fig 3: Identifying Centre Console Trim And Retainers
Courtesy of BMW OF NORTH AMERICA, INC.
