51 16 150 Removing and installing (replacing) front storage tray (ashtray)
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove CENTRE CONSOLE TRIM
NOTE:
- Partially remove middle instrument panel decorative trim.
- Remove ashtray insert.

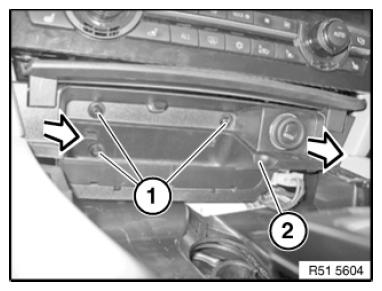

Release screws (1).
Remove front storage tray (2) in direction of arrow.
Replacement:
Transfer 12-V CHARGING SOCKET (CIGARETTE LIGHTER) IN STORAGE COMPARTMENT
