51 45 470 Removing and installing/replacing driver's side hinged compartment panel

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DECORATIVE STRIP ON INSTRUMENT PANEL ON LEFT
Remove HINGED COMPARTMENT ON DRIVER'S SIDE

Release screws (1).

Remove hinged compartment panel (2) and unlock and disconnect plug connection behind.

Installation:

Make sure hinged compartment panel (2) is correctly seated.

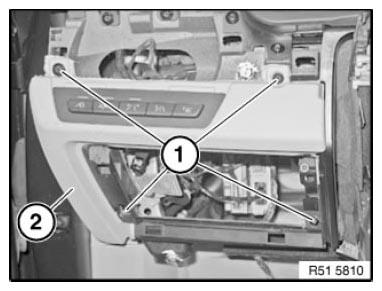

Fig 1: Identifying Hinged Compartment Panel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove CONTROL ELEMENT FOR DRIVER ASSISTANCE SYSTEM .
