51 45 195 Removing and installing/replacing bottom right instrument panel trim (US version only): Replacement

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Remove FOOTWELL LIGHT .

Remove AIRBAG MODULE .

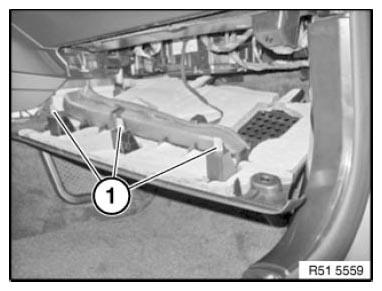

Fig 1: Identifying Footwell Light Retainers
G08508471Courtesy of BMW OF NORTH AMERICA, INC.
