51 45 075 Removing and installing/replacing support for dashboard

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove INSTRUMENT PANEL TRIM
Unclip wiring harness
Only if equipped with Head-Up Display optional equipment:
- Remove HEAD-UP DISPLAY

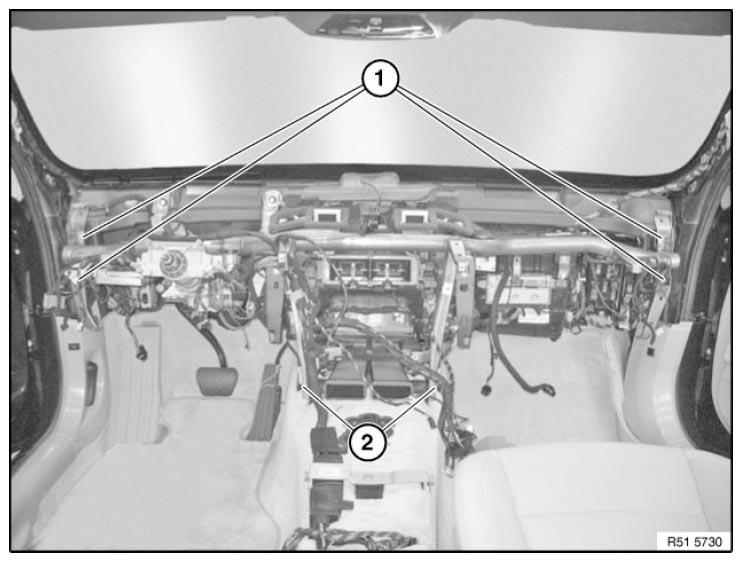

Fig 1: Identifying A-Pillar Nut And Tunnel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) on A-pillar.

Tightening torque 51 45 2AZ .

Release screws (2) on tunnel.

Tightening torque 51 45 3AZ .

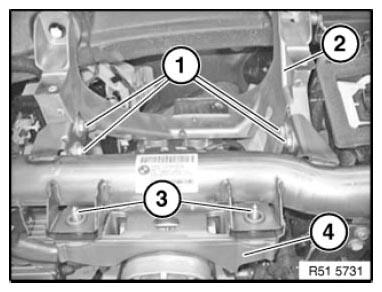

Fig 2: Identifying Steering Column Support, Steering Column And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on steering column support (2).

Tightening torque 51 45 1AZ .

Release screws (3) on steering column (4).

Tightening torque 32 31 1AZ .

Release screw (1) on earth connection.

Release screw (2) on dashboard trim holder (3).

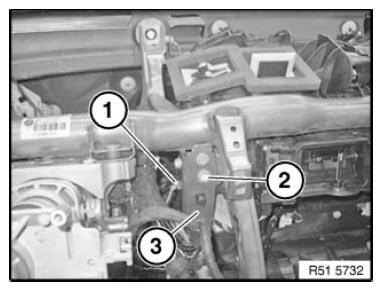

Fig 3: Identifying Trim Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on dashboard trim holder (2).

Remove dashboard support and if necessary feed out through front passenger door.

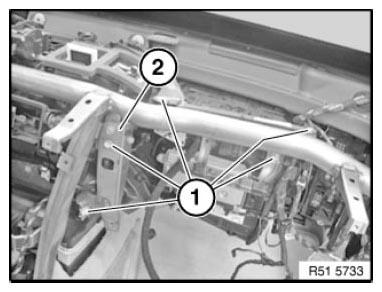

Fig 4: Identifying Dashboard Trim Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
