51 23 110 Removing and installing/replacing engine compartment lid lock on left (from 09/2008 nor for 12-cylinder models): Notes

Necessary preliminary tasks:

• Remove SERVICE FLAPS, LEFT AND RIGHT

Slacken screws (1) and release screws (2).

Tightening torque 51 61 4AZ .

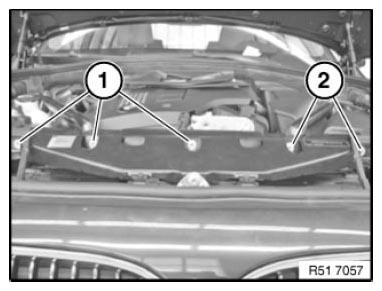

Fig 1: Identifying Engine Compartment Lid Lock Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull back retaining spring from release lever (1).

Feed Bowden cable (2) out of release lever (1) and catch carrier (3).

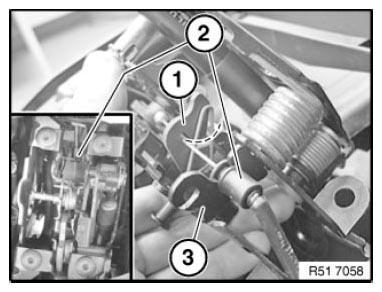

Fig 2: Identifying Bowden Cable, Release Lever And Catch Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Engine compartment lid catch with microswitch:

Detach plug connection (1) by twisting from catch carrier.

Unfasten plug connection (1) and disconnect.

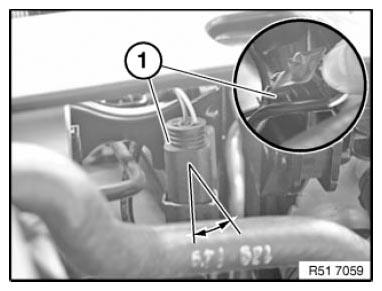

Fig 3: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on engine compartment lid lock (2).

Tightening torque 51 23 2AZ .

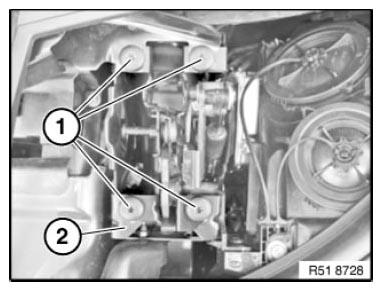

Fig 4: Identifying Engine Compartment Lid Lock And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Push engine compartment lid lock (1) inwards until lock carrier (2) can be raised at the rear (see dashed line in illustration).

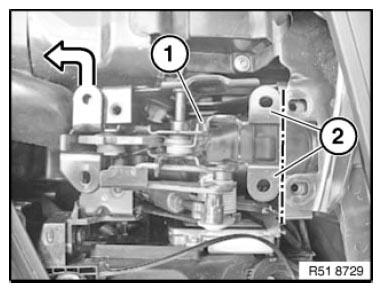

Fig 5: Pushing Engine Compartment Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out bonnet lock (1).

Engine compartment lid catch with microswitch:

Feed out cable from microswitch for anti theft alarm system.

Remove engine compartment lid lock (1).

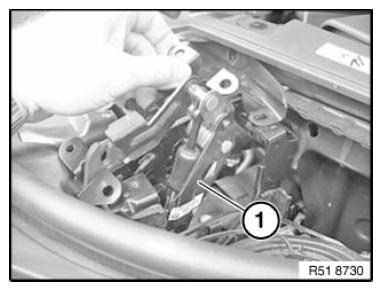

Fig 6: Lifting Out Bonnet Lock
