51 71... Removing and installing or replacing service flap of left or right cover (from 09/2008)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Slightly raise service flap (1) by grip lug (2) and remove in direction of arrow.

Installation note:

Neatly fit service flap (1) in marked area.

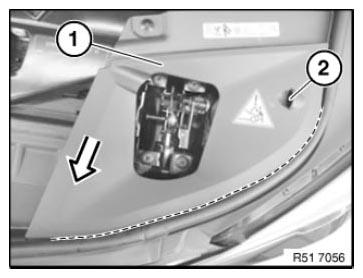

Fig 1: Removing Service Flap By Grip Lug

Courtesy of BMW OF NORTH AMERICA, INC.
