51 76 030 Removing and installing/replacing rear engine hood/bonnet seal

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Up to 08/2008:

Open and detach left and right service flaps (1).

From 09/2008:

REMOVE SERVICE FLAPS (1)

Feed out seal (2) and lay to one side.

NOTE: If necessary, detach front engine compartment lid seal (3) in operating range.

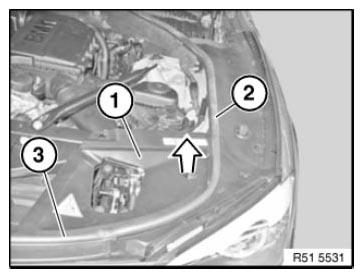

Fig 1: Feeding Out Seal

Courtesy of BMW OF NORTH AMERICA, INC.
