51 64 010 Removing and installing/replacing left or right V-support

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Driving without the V-support is not permitted (risk of damage to the body).

Necessary preliminary tasks:

Remove FRONT BUMPER PANEL .

Not in the case of 12-cylinder models:

Undo screw connection (1) on V-braces (2).

Tightening torque 51 61 6AZ .

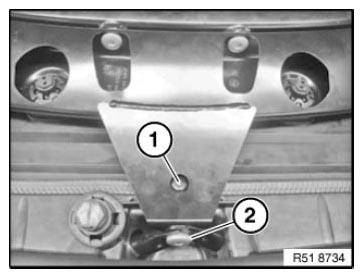

Fig 1: Identifying V-Support With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Only in the case of 12-cylinder models:

Undo screw connection (2) on V-braces.

Tightening torque 51 61 6AZ .

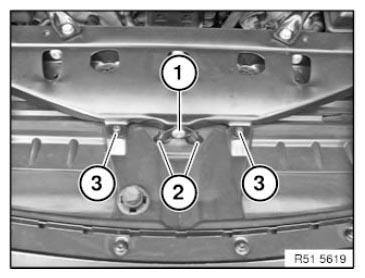

Fig 2: Identifying Screw Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Undo bolt (1) on V-brace (3) on left or right.

Tightening torque 51 11 7AZ .

Maneuver out V-support (3) upwards.

Installation note:

Hose pipe (2) for headlight washer system high-pressure nozzle (right) must be correctly clipped into place at marked points.

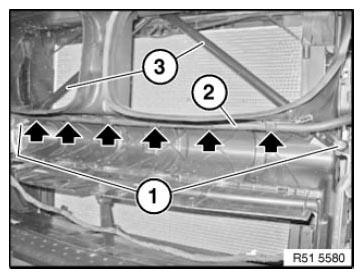

Fig 3: Identifying Hose, Cross-Struts And Screws
