51 32 211 Replacing front left or right rubber guide for left or right door window

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front SIDE WINDOW

IMPORTANT: The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS " serve as the basis for this repair instruction and must be observed without fail.

Pull rubber guide (1) completely out of front door.

Installation note:

Moisten rubber guide (1) prior to fitting with APPROVED ANTI-FRICTION AGENT .

Insert rubber guide at front/bottom into window guide rail.

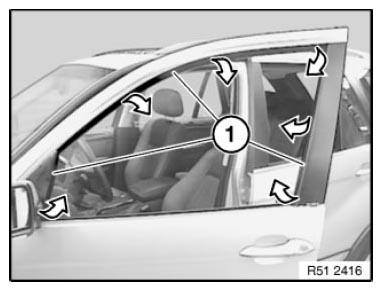

Fig 1: Pulling Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Rubber guide (1) must not be damaged in corners (2).

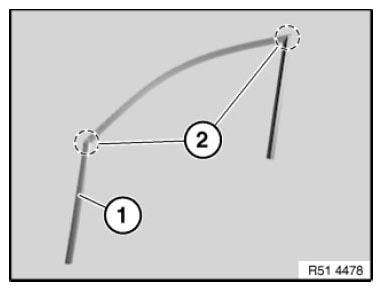

Fig 2: Identifying Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Sound insulation (1) on front door (2) must be neither missing nor damaged.

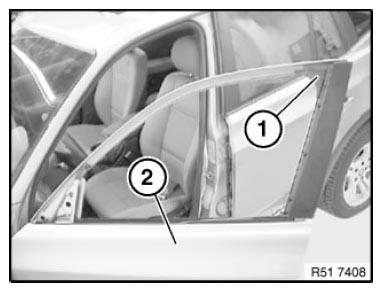

Fig 3: Identifying Sound Insulation And Front Door

Courtesy of BMW OF NORTH AMERICA, INC.
