51 32 170 Remove and install/replace side window, front left or right

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open side window to 145 mm.
Remove SOUND INSULATION FROM FRONT DOOR
Remove OUTER WINDOW CAVITY COVER STRIP

Side window glass must be opened to dimension (A).

A =145 mm

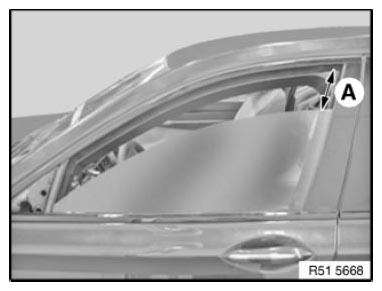

Fig 1: Identifying Side Window Glass Opening Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully unlock window glass locating clips (1) in direction of arrow.

Gently press side window glass upwards to snap retaining lug (2) completely out of side window glass bore hole (3).

IMPORTANT: Risk of damage!
Do not bend locating clips (1) too far.

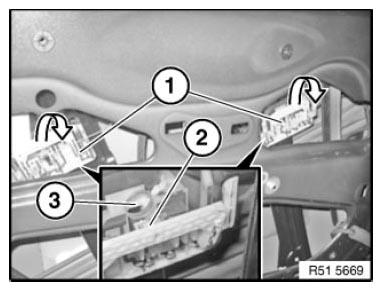

Fig 2: Unlocking Window Glass Locating Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure retaining lug (2) is correctly engaged in side window glass bore hole (3).

Turn side window and lift out towards rear/top.

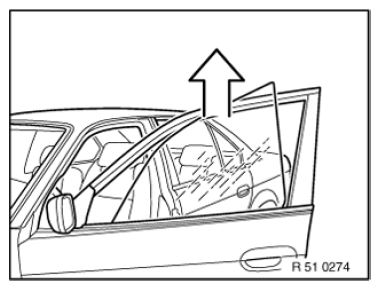

Fig 3: Removing Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bore holes (1) of side window glass (2) must not be damaged.

Side window glass does not need to be adjusted.

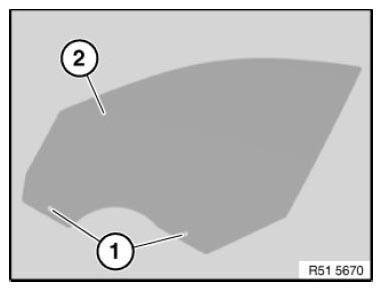

Fig 4: Identifying Bore Holes And Side Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
