51 33 000 Removing and installing / replacing power window regulator in left or right front door: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!
Carry out work on the power window regulator only when the power window motor is de-energized.

Necessary preliminary tasks:

Remove FRONT DOOR WINDOW GLASS

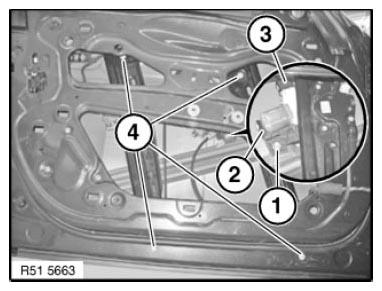

Slacken bolt (1).

Tightening torque 51 33 3AZ .

Release screws (4).

Tightening torque 51 33 2AZ .

Unfasten plug connection (3) and disconnect.

Installation note:

Holder (2) must be correctly seated on inner door panel rail.

Fig 1: Identifying Plug Connection, Holder, Screws And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of power window regulator:

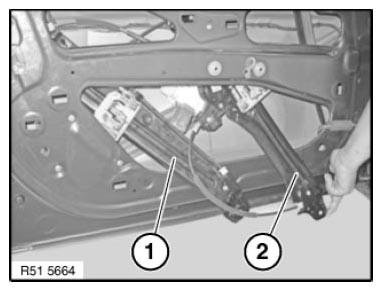

Feed out left-hand window lift rail
Feed out right-hand window lift rail

Fig 2: Identifying Right-Hand And Left-Hand Window Lift Rail
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

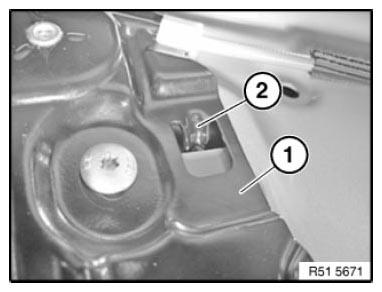

Make sure the guide lug (2) of the power window (1) is correctly seated in recess of door structure.

Fig 3: Identifying Guide Lug And Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.
