Trim the bumper panel to size

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Remove BUMPER PANEL .

Mark points (A to D) on left and right of untrimmed bumper panel (1).

Measurements are taken from the slats of the ornamental grille (2).

A = 65 mm

B= 65 mm

C= 75 mm

D= 90 mm

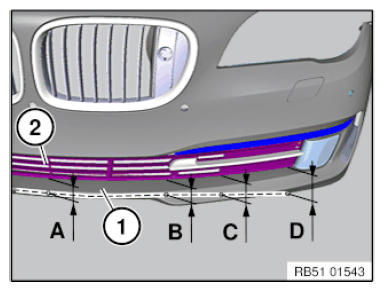

Fig 1: Identifying Left And Right Of Untrimmed Bumper Panel Measurements

Courtesy of BMW OF NORTH AMERICA, INC.

E = Perpendicular to point (D)

Connect points (A to E) and cut out area (1).

Place front spoiler on cut bumper panel and check for accuracy of fit; if necessary, rework bumper panel.

After completion of work, deburr the cutting edges.

BUMPER PANEL must now be attached.

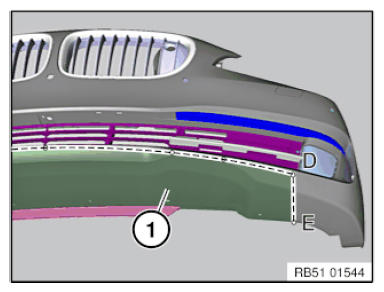

Fig 2: Identifying Cut Out Area

Courtesy of BMW OF NORTH AMERICA, INC.
