51 11 773 Replacing front lower left or right deformation element

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SUPPORT FOR BUMPER PANEL AT FRONT BOTTOM

Partially detach FRONT ENGINE UNDERCOVER and remove screw (1) from bottom cover.

Fig 1: Identifying Bottom Cover Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) on brake air duct (1).

Remove brake air duct (1) in direction of arrow.

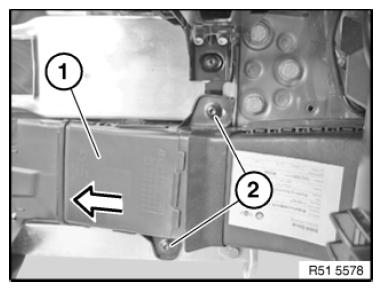

Fig 2: Removing Brake Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on vertical connection (2).

Tightening torque 51 11 2AZ .

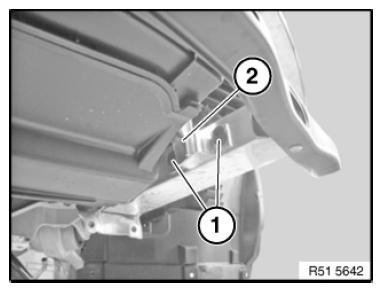

Fig 3: Identifying Vertical Connection With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1) on front axle support adapter plate (2).

Tightening torque 51 11 6AZ .

Remove deformation element (3).

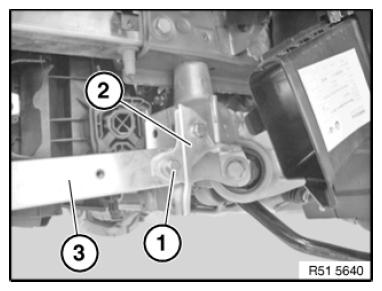

Fig 4: Identifying Front Axle Support Adapter Plate, Deformation Element And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.
