51 11 060 Removing and installing/replacing support for front lower bumper panel
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front BUMPER PANEL
- Remove FRONT UNDERBODY PROTECTION in the working area
- If necessary, remove impact absorber below

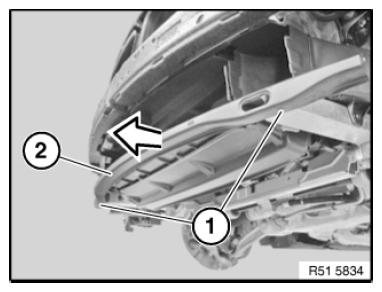

Release screws (1).
Tightening torque 51 11 10AZ .
Remove support (2) in direction of arrow.
