Fitting spacer buffers
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
To avoid rear window breakage and wind noises:
Completely remove remnants of removed spacer buffers and maintain installation location exactly.
The following spacer buffer is fitted.
6 x spacer buffers (5x5x20)

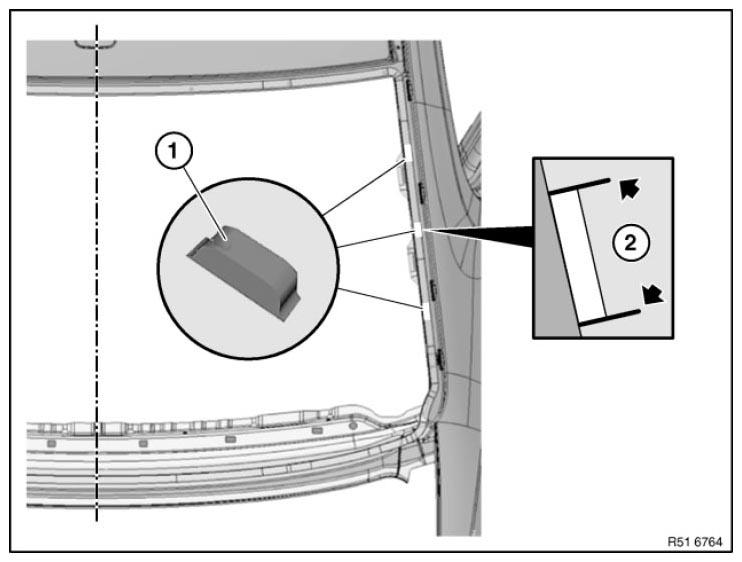

Installation position of spacer buffers (1) is specified on body side with markings (2).
Installation note:
If necessary, replace faulty UPPER REAR WINDOW COVER .
If necessary, replace faulty LOWER RUBBER FRAME for rear window.
Completely remove remnants of removed spacer buffers and maintain installation location exactly.
The following spacer buffer is fitted.
6 x spacer buffers (5x5x20)
Installation position of spacer buffers (1) is specified on body side with markings (2).
Installation note:
If necessary, replace faulty UPPER REAR WINDOW COVER .
If necessary, replace faulty LOWER RUBBER FRAME for rear window.
