51 31 242 Replacing rubber frame (bottom) for rear window

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BOTH TRIM STRIPS FROM ROOF FRAME

IMPORTANT: Rubber frame (1) is reinforced with an aluminium strip.
Pull off rubber frame (1) carefully in direction of arrow (rear window breakage).

NOTE: Tear-off tab on left/right may be bonded to adhesive.
When rubber frame (1) is removed, tear-off lip on left/right may tear off and remain in vehicle.

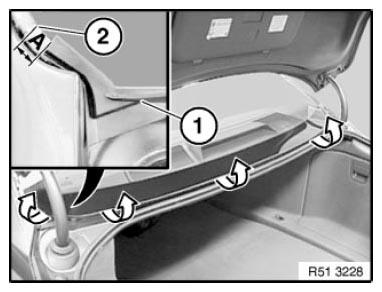

Fig 1: Removing Rubber Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Gap (A) between rubber frame (1) and rear window corner (2) must be the same on left/right.

Installation:

Replacement of rubber frame without rear window removal:

Detach tear-off tabs (2) from rubber frame (1).

If adhesive has managed to get onto bridge, this area must be cut out partially.

Replacement of rubber frame with removed or new rear window:

Fit rubber frame with tear-off tabs (2).

3 Aluminium strip

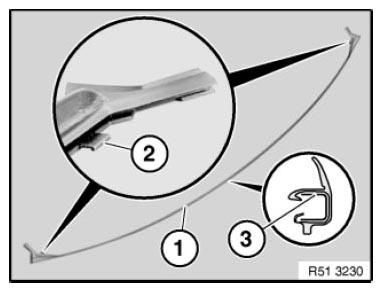

Fig 2: Identifying Tear-Off Tabs, Rubber Frame And Aluminium Strip

Courtesy of BMW OF NORTH AMERICA, INC.
