Manual emergency release of parking lock from passenger compartment is not possible with GA6HP transmissions from 03/2010
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
- From production date 03/2010, the Bowden cable is no longer required for transmission unlocking for:
- F01 / F02 / F03 GA6HP
Before removing the underbody panel, always check inside the vehicle to be certain the parking lock emergency release is not fitted.
From the vehicle underbody:
Raise vehicle.
Manual emergency release of parking lock

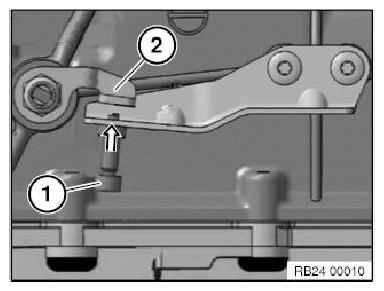

Graphic shows: GA6HP gearbox.
- Remove UNDERBODY PROTECTION
- Screw in screw (1) with hexagon socket (SW5) until parking lock is released by lever (2).
Then unscrew and remove screw (1).

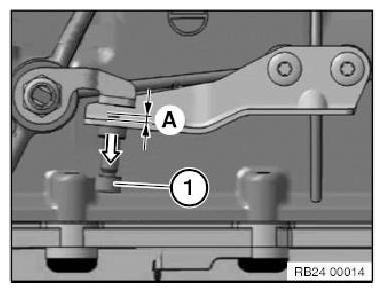

Screw (1) should protrude 1.5 to 2.5 mm above thread lip (A).
From the vehicle underbody:
Raise vehicle.
Manual emergency release of parking lock:

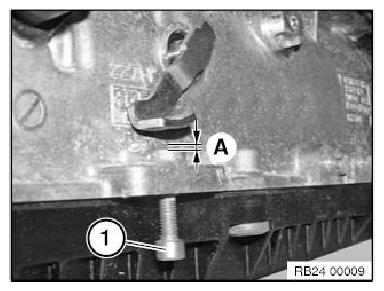

Illustration shows GA8HP transmission.
- Remove UNDERBODY PROTECTION
- Screw in screw (1) with hexagon socket (SW5) until parking lock is released by lever (2).
- It is imperative that bolt is always replaced.
- Clean thread with screw tap size M6X1, 0.
Screw new micro-encapsulated screw (1) into thread.
IMPORTANT:
Screwing in and adjusting of screw to 1.5 to 2.5 mm above thread lip (A) must occur within 3 minutes.
The screw may no longer be turned after 3 minutes (hardening of adhesive), otherwise it must be replaced.
The screw may no longer be turned after 3 minutes (hardening of adhesive), otherwise it must be replaced.
From passenger compartment:
- Refer to MANUAL EMERGENCY UNLOCKING OF PARKING LOCK .
From underneath vehicle with Bowden cable:

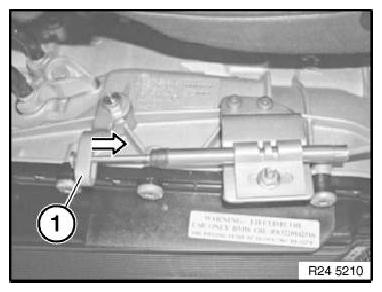

- Illustration shows GA6HP transmission.
- Remove rear UNDERBODY PROTECTION .
- Press lever (1) towards rear.
Clamp lever firmly if permanently unlocking is desired.
Locking:
- Release lever (1) or release clamping
