51 47 491 Removing and installing/replacing rear underbody protection
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

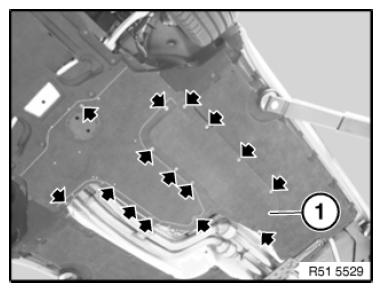

Unscrew all bolts.
Tightening torque 51 75 1AZ .
Remove underbody protection (1).
Installation note:
Make sure underbody protection (1) is correctly seated.
