24 14 001 Replacing selector shaft seal (GA6HP26Z)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

IMPORTANT: After completion of work, check TRANSMISSION OIL LEVEL .
Use only the approved transmission fluid: Shell M-1375.4 ; BMW part number 83 22 0 142 516 ; 20 liters
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Remove rear UNDERBODY PROTECTION
Remove left retaining plate
AWD - remove right retaining plate

IMPORTANT: Support transmission with workshop hoist.

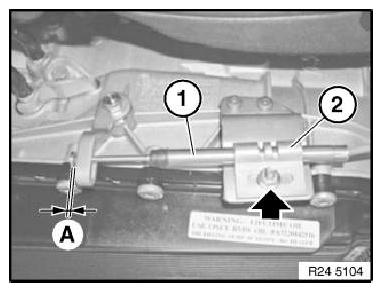

Unfasten nut.

Remove cable (1).

Installation:

Adjusting cable:

Release nut
Adjust cable by means of holder (2)
Distance A ≥ 1 mm.

Fig 1: Locating Cable Nut
Courtesy of BMW OF NORTH AMERICA, INC.

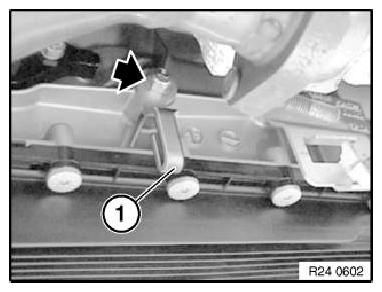

Unfasten nut.

Take off holder (1).

Tightening torque 24 51 1AZ .

Fig 2: Locating Holder Nut

G08495762

Courtesy of BMW OF NORTH AMERICA, INC.

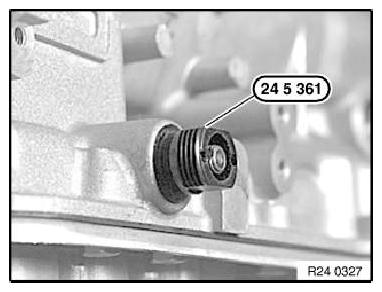

Screw in special tool 24 5 361 until it is firmly connected with radial shaft seal.

Fig 3: Connecting Radial Shaft Seal Using Special Tool (24 5 361)

G08495763

Courtesy of BMW OF NORTH AMERICA, INC.

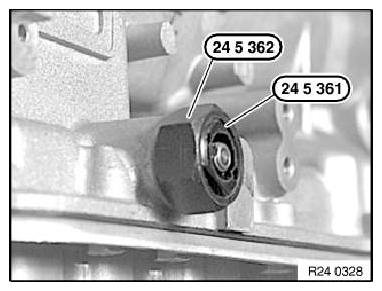

Screw special tool 24 5 362 onto special tool 24 5 361 and tighten down.

This pulls the shaft seal out of the transmission housing.

Fig 4: Tightening Special Tool (24 5 362) Onto Special Tool (24 5 361)

G08495764

Courtesy of BMW OF NORTH AMERICA, INC.

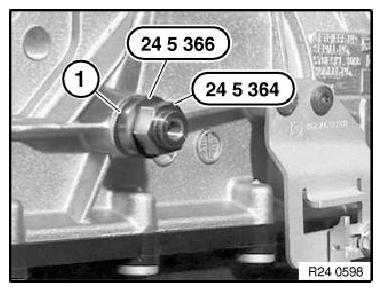

Oil sealing lip on shaft seal (1).

Screw in radial shaft seal (1) with special tools 24 5 366 and 24 5 364 as far as it will go.

Fig 5: Tightening Radial Shaft Seal Using Special Tools (24 5 366 And 24 5 364)

G08495765

Courtesy of BMW OF NORTH AMERICA, INC.
