24 50 010 Replacing emergency operation

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTRE CONSOLE .
Remove rear UNDERBODY PROTECTION .
Remove left retaining plate from underbody protection
Support transmission with lifter.
Remove transmission CROSSMEMBER
Remove transmission support bracket

Unfasten nut.

Remove cable (1).

Installation note:

Adjust GEARSHIFT LEVER .

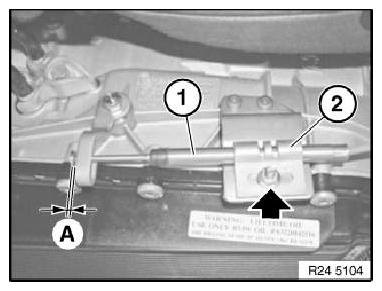

Fig 1: Locating Cable Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 24 51 2AZ .

Release cable from pipe clamp (2).

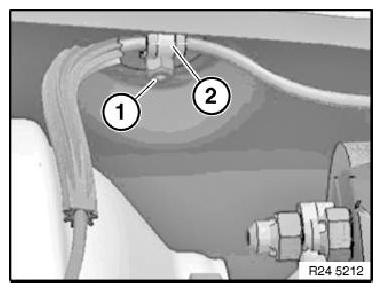

Fig 2: Identifying Pipe Clamp And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Reinstall transmission support bracket and transmission cross member
Lower vehicle

Release nuts (1) and remove emergency operation (2) in upward direction.

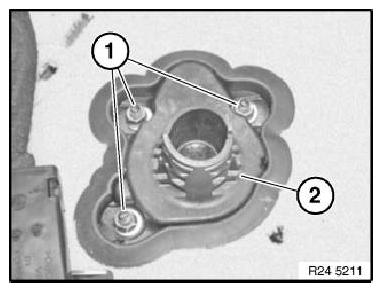

Fig 3: Identifying Actuator And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
